ขนาดสินค้ารวมบรรจุภัณฑ์ | (กxยxส) 10.5x16x9.5 ซม. |
น้ำหนักรวมบรรจุภัณฑ์ | 1กก. |

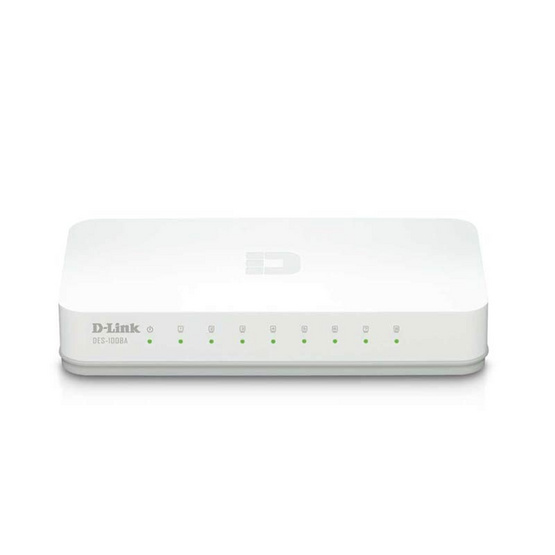

ชื่อรุ่น : DES-1008A
ยี่ห้อ : D-Link
สี : ขาว
การรับประกันสินค้า : Limited Lifetime
ศูนย์บริการ (Service Center) :
** กรณีส่งเคลมสินค้าที่ศูนย์บริการ รบกวนนำใบเสร็จของทาง 24 Shopping ไปยี่นพร้อมสินค้าด้วยทุกครั้ง
ข้อมูลสินค้า :
Device Interfaces: Eight 10/100 Fast Ethernet LAN ports
Advanced Features
Green Ethernet
1.6 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Compliance with IEEE802.3az EEE power saving
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
RoHS compliant
Supports 2048-byte Jumbo Frames
Protocol: CSMA/CD
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Transmission Method: Store-and-forward
MAC Address Table: 2K
MAC Address Learning: Automatic Update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer: 96 KB per device
LED Indicators
Per port: Link/Activity
Per device: Power
Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
Dimensions: 141.5 x 78.5 x 23.8 mm (5.57 x 3.09 x 0.94 inches)
Power: 5 V/0.55 A Power Adapter
Heat Dissipation
Power On (Standby): AC input:2.0472 Btu/h
Maximum: AC input:7.47228 Btu/h
Power Consumption
Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts
Maximum: DC input: 1.78 watts, AC input: 2.19 watts
Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts
Temperature
Operating: 0 to 40 ?C (32 to 104 ?F)
Storage: -10 to 70 ?C (14 to 158 ?F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
MTBF: 2,137,319 hours
Certifications
CE Class B
FCC Class B
cUL
CB
VCCI Class B
