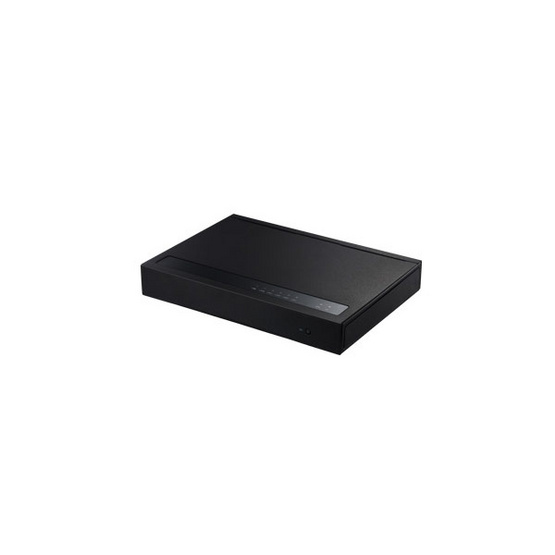

TOTOLINK AC500 Wireless LAN Controller

TOTOLINK AC500 Wireless LAN Controller

ชื่อแบรนด์ : TOTOLINK

รุ่น : AC500

ขนาดสินค้า : 18.2 x 12.95 x 2.7 cm

น้ำหนักสินค้า : 0.4 kg

การรับประกัน : สินค้ารับประกันตลอดอายุการใช้งาน

Overviews

AC500 is a wireless LAN controller that designed to central manage TOTOLINK ceiling mount AP and In-wall AP series in your organization. It supports up to 200 access points management, mainly used in hotels, enterprises, schools, shopping malls, restaurants to simplify the deployment and operation of wireless network.

Access Point Discovery Automatically

AC500 could automatically find out all TOTOLINK ceiling mount APs and in-wall APs in the network, allowing you to control all by adding them into AP management list.

Centralized Management By Group

Multiple AP groups could be created in AC500 so that you can central manage all APs by group easily and fast, including unified Wireless Basic settings, Channel assignment, firmware upgrade, configuration file import, etc. All access points support plug-and-play without any separate setup.

Flexible Network Deployment

The AC500 wireless LAN controller can be used for LAN management, WEB management, or even “Cloud management” without network manager, simplifying the network deployment for various environments.

Access Points Isolation, Multiple Wi-Fi Networks Available

Featured by AP isolation, AC500 enables APs under management to create multiple SSIDs and isolate them due to different network purpose so that each network connected terminals can’t access to each other, protecting user’s privacy conveniently.

USB 2.0 For Unified Firmware Upgrade

As long as you upload latest AP firmware to storage device and plug it into AC500’s USB 2.0 port, the controller will automatically detect all AP’s existing firmware version and upgrade them to the latest version, making the AP maintenance more flexible and intelligent.

SSID Binding With VLAN

AC500 allows different SSID binding with different Tag VLAN and DHCP to provide IP address range in different domain, realizing the real traffic isolation between different wireless networks to guarantee the network security.

Features

- Centralized configuration for multiple access points

- Supports access points management by group

- APs working status monitoring in real time

- Access points auto detect for easy use

- APs binding offers high security without unauthorized access

- Supports maximum of 200 AP connections

- USB 2.0 port for unified firmware upgrade of APs

- Supports manual and scheduled AP reboot

- Supports ByPass Mode for management.

- Supports Local Bridge mode.

- Provides WEB (HTTP and HTTPS) for network management.

Tech Specs

HARDWARE FEATURES

Interface

- 5*10/100Mbps LAN Ports

- 1*USB 2.0 port

Power Supply

- 9V DC/0.8A

Button

- RST Button

LED Indicators

- 1 *Power, 1 *SYS, 5 *LAN, 1 *USB

Dimensions (L x W x H)

- 7.2 x 5.1 x 1.1 in. ( 182 x 129.5 x 27mm)

WIRELESS FEATURES

Maximum Number of Manageable APs

- 200

AP Management

- AP Scan

- AP Status

- AP Group Management

- AP Settings

- AP System Management

AC Working Mode

- Local Management

- Remote Management

AC System Management

- Local IP Settings

- Administrator Settings

- Time Zone Settings

- Firmware Upgrade

- System Configuration

- Reboot Schedule

Package Contents

- AC500 AP Controller*1

- Power Adapter *1

- Ethernet Cable *1

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
