| ขนาดสินค้ารวมบรรจุภัณฑ์ | (W x L x H) 3.9 x 19.8 x 7 cm |
| น้ำหนักรวมบรรจุภัณฑ์ | 0.81 kg |
ชื่อแบรนด์ : Tenda
รุ่น : AC5
ขนาดสินค้า : 22x14.5x4.9 cm
น้ำหนัก : 0.35
การรับประกัน : 5 Years
Overview

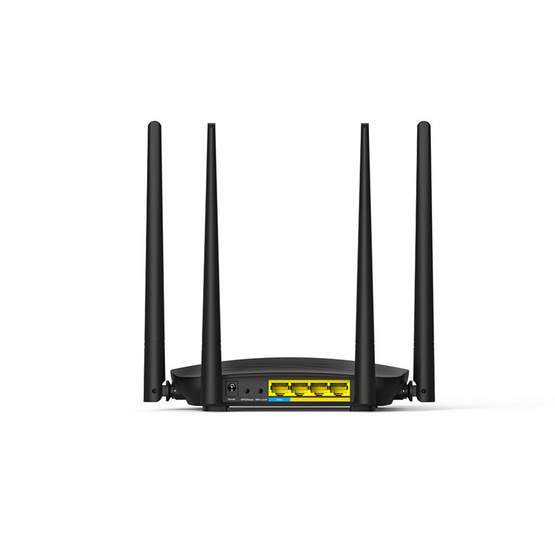

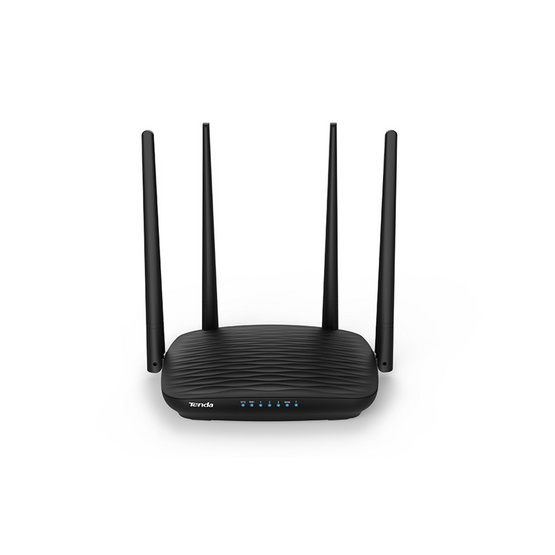

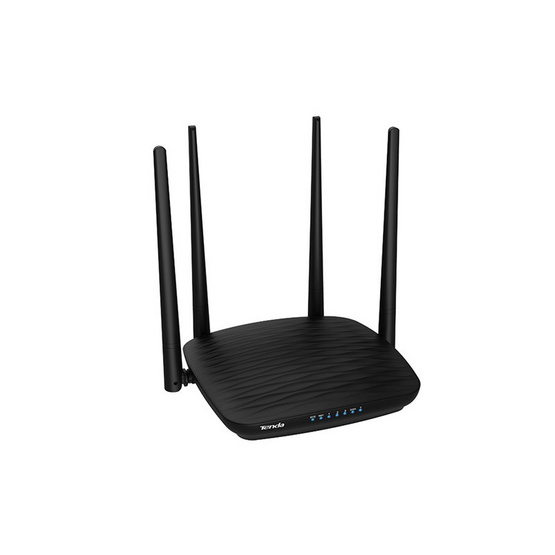

AC5 / Router / AC1200 Smart Dual-Band WiFi Router
- AC5 AC1200 Smart Dual-Band WiFi Router.Migration of ISP User Name and Password,Four 5dBi dual-band omni-directional antennas,1 GHz CPU / MU-MIMO / Beamforming+ technology ,Remote management via Tenda WiFi App.Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.
High performance CPU ensures fast internet connection
- Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.
2.4 GHz +5 GHz ensure faster transmission and stronger signals
- Powered by the new 802.11ac Wave 2.0 technology, AC5 offers a combined dual-band wireless rate of as high as 1167 Mbps, a significantly outperforming 802.11n routers in transmission. 5 GHz band can offer more independent channels with less interference and more stable WiFi coverage. Application of MU-MIMO technology improves quantity of simultaneously devices connected to its WiFi Network, including guest network greatly.
MU-MIMO New Technology
- Application of MU-MIMO technology improves quantity of simultaneously devices connected to its WiFi Network, including guest network greatly.
Beamforming+ technology
- AC5 employees the Beamforming+ technology, which can concentrate disperse wireless signals to a single direction, providing technical support for whole home WiFi coverage of small and medium-sized apartments. The Beamforming+ technology can build a dedicated channel between clients, such as phones and pads, and the router, to ensure a longer transmission distance and higher data transmission stability.
Manage your router via smart Tenda WiFi App anytime anywhere
- Start your smart life with Tenda WiFi App;
- Cloud-management via Tenda WiFi App allows you to mange your router anytime anywhere;
- Disconnect unauthorized users with a single tap;
- One-key channel optimization bring you better WiFi experience;
- Signal strength adjustment guarantees strongest WiFi signal;
- Security check keeps you updated on unauthorized connections.
Specification
Standard&Protocol
- IEEE802.3, IEEE802.3u
Interface
- 10/100 Mbps WAN port*1
- 10/100 Mbps LAN port*3
Antenna
- 5dBi External antenna*4
Button
- WPS/Reset button*1, WiFi on/off button*1
Power
- AC input: 100-240V-50/60Hz, 0.2A
- DC output: 9V 1A
LED
- System*1, WiFi*1, WAN*1, LAN*3
Rate
- 5 GHz: Up to 867 Mbps
- 2.4 GHz: Up to 300 Mbps
Frequency
- Concurrent dual band 2.4 GHz & 5 GHz
Transmit Power
2.4G:
- 16dbm@MCS7
- 17dbm@OFDM 54M
- 19dbm@CCK 11M
5G:
- 12dbm@MCS9
- 14dbm@MCS7
Basic Features
- SSID Broadcast: Enable/Disable
Beamforming
- MU-MIMO
Wireless Security
- WPA-PSK/WPA2-PSK, WPA/WPA2
- Wireless Security: Enable/Disable
- WPS (WiFi Protected Set-up) quick encryption
Internet Connection Type
- PPPoE, Dynamic IP, Static IP
- PPPoE (Russia), PPTP (Russia), L2TP (Russia)
Operating mode
- Wireless Router Mode
- Universal Repeater Mode
- WISP Mode
- AP Mode
DHCP Server
- DHCP Server
- DHCP Client List
- DHCP Reservation
Virtual Server
- Port Forwarding
- DMZ Host
- UPnP
Security
- Client Filter (support blacklist and whitelist)
- Parental Control
- Remote Management
Firewall
- Forbid UDP flood attack
- Forbid TCP flood attack
- Forbid flood attack
- Forbid WAN PING from internet
DDNS
- Support DDNS, No-ip, 3322.org, Oray.com, 88ip
VPN
- Ipsec
- PPTP
- L2TP
- PPTP client
- L2TP client
Features
- PPPoE Username/Password Clone
- Smart WiFi Schedule
- Smart Sleeping Mode
- Smart LED on/off
- Tenda WiFi App
Other
- Bandwidth Control
- Guest Network
- IPTV
- MAC Address Clone
- Static Routing
- System Log
- Backup & Restore configurations
- Online firmware upgrade
- Local firmware upgrade
Temperature
- Operating Temperature: 0℃ - 40℃
- Storage Temperature: -40℃ -70℃.
Humidity
- Operating Humidity: (10 - 90)% RH non-condensing
- Storage Humidity: (5 - 90%) RH non-condensing.
Default Settings
- Default Access: tendawifi.com
Certification
- CE/FCC/RoHS
Package Content
- AC1200 Smart Dual-Band WiFi Router
- Power Adapter
- Quick Installation Guide
- Ethernet Cable
