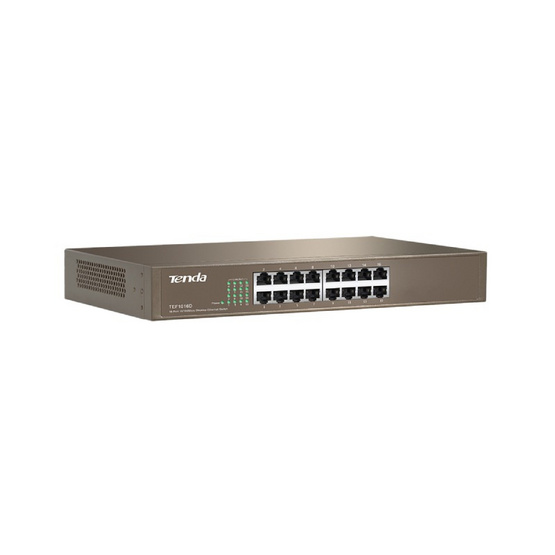

Tenda TEF1016D 16 port 10/100 สวิตซ์

Tenda TEF1016D 16 port 10/100 สวิตซ์

ชื่อแบรนด์ : Tenda

รุ่น : TEF1016D

ขนาดสินค้า : 44.1x12.2x4.4 cm

น้ำหนัก : 1.5

การรับประกัน : 5 Years

Overview

TEF1016D / Switch / 16-Port 10/100 Switch

- Tenda TEF1016D 16-Port 10/100 Switch is specially engineered to provide simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 16-port switch to a router and add up to fifteen more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy metal case, it is ideal for years of dependable use.

TEF1016D 16-Port 10/100 Switch

What It Does

- The Tenda TEF1016D 16-Port 10/100 Switch is specially engineered to provide simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 16-port switch to a router and add up to twenty three more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy metal case, it is ideal for years of dependable use.

Main Feature

- 16 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection

- Up to 200Mbps full duplex bandwidth on each port

- Sturdy metal case ideal for years of dependable use

- 8K MAC address table with address Learning and Aging, and Data Flow Control for enhanced transmission

- Support 6000V lightning protection for power supply

- Support standard 13/19 inch rack-mountable

- Support Plug and Play,without any configuration

Space-saving Design for

- 100-Mbps speed, a switching capacity of up to 3.2Gbps and nonblocking wire speed forwarding meet the performance needs for a high speed and smooth network.

Standards & Protocols

- Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX.

Stable & Reliable

- The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover.

Inductive Lightning

- Integrating professional circuits, Tenda New 16-Port Unmanaged Fast Switch can protect the power supply from inducive lightning (6KV in Common Mode Protection).

Plug & Play

- The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover.

Specification

Standard&Protocol

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Port

- 16*10/100M Base-T Ethernet ports (Auto MDI/MDIX)

Power

- Output: 20W

Input Voltage

- AC:100~240V

- 50/60Hz

Forwarding Mode

- Store and Forward

Switching Capacity

- 3.2Gbps

MAC Address Table

- 4K

Dimension

- 441mm* 122mm*44mm (L x W x H)

Package Content

- TEH1600M

- User Manual

Environment

- Operating Temperature: 0℃ ~ 40℃

- Storage Temperature: -40℃ ~ 70℃

- Operating Humidity: 10% ~ 90%RH non-condensing

- Storage Humidity: 5% ~ 90%RH non-condensing

Related Products

- TEG1224T, TEG1216T TEG1024G TEH1600S

Certification

- FCC, CE, RoHS
