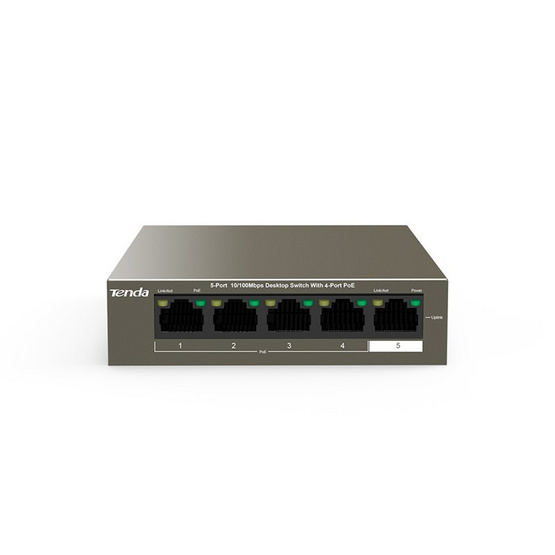

Tenda TEF1105P-4-63W 5 port 10/100 Unmanage Desktop PoE สวิตซ์

Tenda TEF1105P-4-63W 5 port 10/100 Unmanage Desktop PoE สวิตซ์

ชื่อแบรนด์ : Tenda

รุ่น : TEF1105P-4-63W

ขนาดสินค้า : 10x10x2.6 cm

น้ำหนัก : 0.5

การรับประกัน : 5 Years

Overview

TEF1105P-4-63W / Switch / 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

- TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.

Up to 250 meters long distance transmission beyond hundred meters transfer limit

- Due to the complex monitoring environment, when making cabling and networking, it very often to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit.

58W PoE power supply simplified wiring

- Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.

Specification

Standard&Protocol

- IEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3af?IEEE 802.3at

Indicator

- 5*Link/Act per device

- 4*PoE per device

- 1*Power per device

Interface

- 4 10/100Base-Tx ports(Data/Power)

- 10/100Base-Tx port(Data)

Port

- Lightning Protection: 6KV

Store & Forward

- Yes

exchange capacity

- 1 Gbps

Packet Forwarding Rate

- 0.744Mpps

MAC Address Table

- 2K

PoE supply management

- Port 1 to Port 4 support IEEE802.3at/af PoE standard

PoE through pin

- 1 2 4 5 +,3 6 7 8 -

Power Input

- AC:100-240V~ 50/60Hz

Dimension

- 100*100*26mm ( W x D x H )

Power Consumption

- in full configuration:<63W

- PoE Max Power Supply:58W

Ports feature

- Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

- Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.

Environment

- Operating Temperature: 0℃~40℃ (32℉~104℉)

- Storage Temperature: -40℃~70℃ (-40℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
