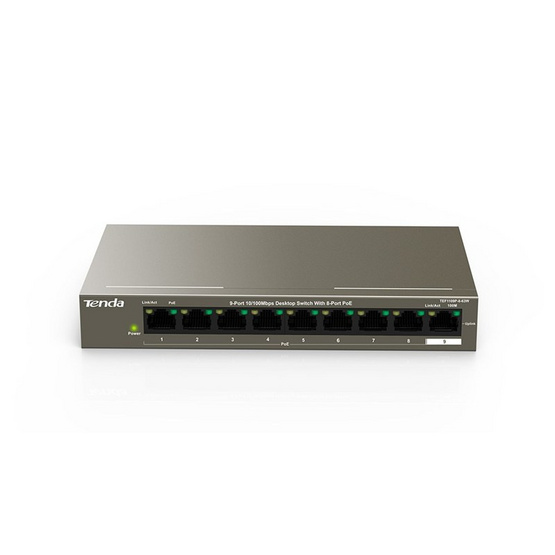

Tenda TEF1109P-8-63W 9 port 10/100 Unmanage Desktop PoE สวิตซ์

Tenda TEF1109P-8-63W 9 port 10/100 Unmanage Desktop PoE สวิตซ์

ชื่อแบรนด์ : Tenda

รุ่น : TEF1109P-8-63W

ขนาดสินค้า : 17.75x10.4x2.6 cm

น้ำหนัก : 0.7

การรับประกัน : 5 Years

Overview

TEF1109P-8-63W / Switch / 9-Port 10/100Mbps Desktop Switch With 8-Port PoE

- TEF1109P-8-63W Up to 250 meters long distance transmission, beyond hundred meters transfer limit.6KV lighting protection PoE switch is the real monitoring private switch .Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.

is the real monitoring private switch

- In real monitoring project, cameras are often installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable , which equivalent to give the entire network monitoring system with a security fence,The test standard is much higher than the national CE request,.In thunderstorms weather,it can also provide monitoring network stable, reliable service, protect the images transmission be normal.

Outstanding PoE Power Supply

- Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.

Specification

Standard&Protocol

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3af, IEEE 802.3at

MTBF

- ≥50,000 hours(about 5 years)

Indicator

- Link/Act, PoE Status, Power, 100M

Fixed Port

- 8 10/100Base-TX RJ45 Ports(Data/Power)

- 1 10/100Base-TX RJ45 Port(Data)

Lightning Protection

- 6KV

Wire-speed forwarding

- Support

Switching Capacity

- 1.8 Gbit/s

MAC Address Table

- 4K MAC

PoE supply management

- Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W),PoE power type is end-span(1245+, 3678- line pair)

- in full configuration:<63W

- PoE Max Power Supply:58W

Dimension

- 177.5mm*104mm*26mm (W ? D ? H)

Input Voltage

- AC:100-240V~ 50/60Hz

- DC:51V /1.25A (Power Adapter )

Environment

- Operating Temperature: 0℃~40℃ (32℉~104℉)

- Storage Temperature: -40℃~70℃ (-40℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing

One-key Mode

- Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.

- Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).

Certification

- 3C, FCC, CE, RHOS
