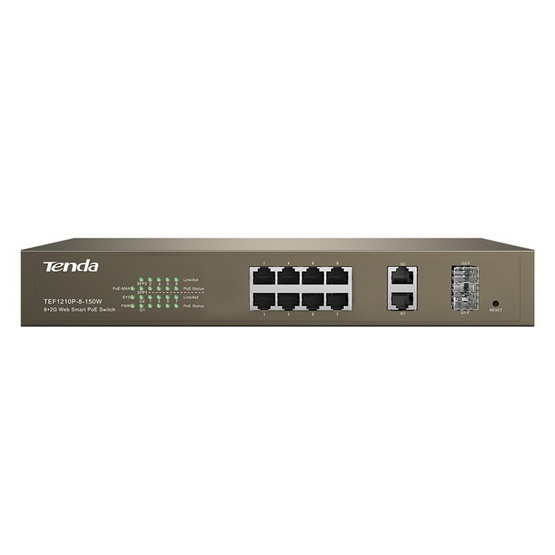

Tenda TEF1210P-8-150W 8 port 10/100 Manage PoE Switch สวิตซ์
รหัสสินค้า  296149010

Tenda TEF1210P-8-150W 8 port 10/100 Manage PoE Switch สวิตซ์

รหัสสินค้า  296149010
  • รองรับ PoE 8 port จ่ายไฟรวม 123W
  • สามารถส่งข้อมูลและไฟได้ไกลสุด 250 เมตร
  • Capacity 5.6 Gbps Throughput 4.22 Mpps
  • MAC Adddress 4K
ราคาปกติ:  ฿ 5,450
ราคาพิเศษ:  ฿ 4,290
ประหยัดทันที  ฿ 1,160
ราคานี้ใช้ได้ตั้งแต่  21/05/2019 - 16/10/2019
รวมยอดของ
- +
มีสินค้าในสต๊อก
สินค้านี้จำกัดจำนวนในการสั่งซื้อ
ส่งฟรีที่เซเว่นอีเลฟเว่น
ของแท้ 100%

สินค้าแนะนำสำหรับคุณ

Packaging Dimension (W x L x H) 29.4 x 17.8 x 4.4 cm
Weight Detail 1.8 kg

Tenda TEF1210P-8-150W 8 port 10/100 Manage PoE Switch สวิตซ์

ชื่อแบรนด์ : Tenda

รุ่น : TEF1210P-8-150W

ขนาดสินค้า : 29.4x17.8x4.4 cm

น้ำหนัก : 1.8

การรับประกัน : 5 Years



Overview

TEF1210P-8-150W / Switch / 8-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch

- Tenda TEF1210P switch supports 8 PoE ports, which can supply power to most powered devices through 8-core Ethernet cable, and the total PoE power can be up to 123 W while each PoE port can support the maximum of 40 W.

6KV lighting protection PoE switch is the real monitoring private switch

- In real monitoring project, cameras are often installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis.Tenda TEF12 series switches have professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable , which equivalent to give the entire network monitoring system with a security fence,The test standard is much higher than the national CCC request,.In thunderstorms weather,it can also provide monitoring network stable, reliable service, protect the images transmission be normal

Up to 250 meters long distance transmission beyond hundred meters transfer limit

- Due to the complex monitoring environment, when making cabling and networking,it very often to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers.Tenda TEF12 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit ;Provide gigabit linked light port , can meet the demand of transmition to a few tens of

The total PoE power is 123W, 8 port full load power supply is enough

- The machine total PoE power is 123W, can support 8 port full PoE power supply; One Port POE supply is 40 w, PoE power supply can meet the full football machine and other power supply equipment neeeds; Eight core power supply design, network power consumption reduced to half, highly reduce the power loss of the inferior cable, make sure the camera get electricity and stability


Specification


Standard&Protocol

- IEEE 802.3? IEEE 802.3u?IEEE 802.3z?IEEE 802.3ab?IEEE 802.3x?IEEE 802.1D?IEEE 802.1W?IEEE 802.1Q?IEEE 802.3af?IEEE 802.3at


MTBF

- 100,000hours

- Indicator

- Link/Act, PoE Status,System, Power,PoE Max


Interface

- Fixed Ports:8 10/100Base-TX ports

- 2 10/100/1000Base-T ports

- 2 1000Base-X SFP ports Combo)

- lightning protection:≥6KV


Performance

- Store and forward:Yes

- Exchange capacity:5.6 Gbit/s

- MAC address entries:4K MAC


Power

- Power supply module:Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W)

- PoE through pin:1 2 4 5 +,3 6 7 8 -

- Voltage input range:AC:100-240V~ 50/60Hz


Dimension

- 294mm*178.8mm*44mm(L?W?H)


Weight

- ≤5kg


Power Consumption

- <150W

- PoE consumption up to 130W


Temperature

- Perating temperature:0 ℃~40 ℃

- Storage temperature:-40 ℃~70 ℃


Humidity

- Operational:10%~95%(noncondensing)

- Storage:10%~95%(noncondensing)


PoE supply management

- Support setup of PoE

- Support power adjustable by priority

- Support over temperature protection for PoE module


VLAN

- Support VLAN(4K) based on ports

- Support 802.1QVLAN


Mirroring

- Support local mirror image


Link Aggregation

- Support LACP, manual link aggregation

- Support up to 6 link aggregation groups and up to 8 GE ports per group


QoS

- Support message transmission for ports and limitation of speed

- Support SP & WRR


Layer 2 ring network protocol

- Support STP/RSTP and looped Network for devices


Certification

- FCC/CE/RoHS
