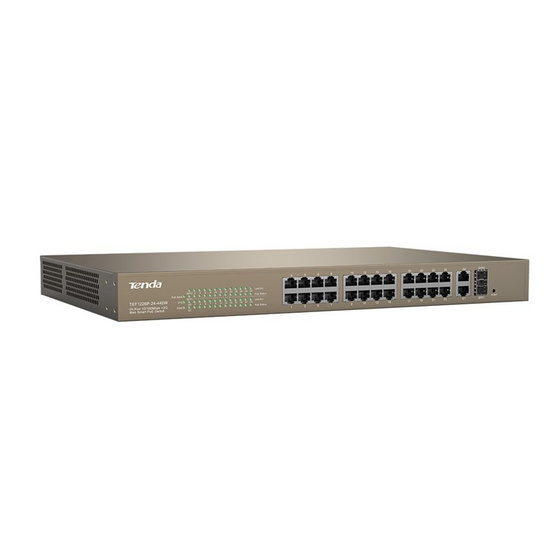

Tenda TEF1226P-24-440W 24 port 10/100 Manage PoE Switch สวิตซ์

Tenda TEF1226P-24-440W 24 port 10/100 Manage PoE Switch สวิตซ์

ชื่อแบรนด์ : Tenda

รุ่น : TEF1226P-24-440W

ขนาดสินค้า : 44x28.4x4.4 cm

น้ำหนัก : 5

การรับประกัน : 5 Years

Overview

TEF1226P-24-440W / Switch / 24-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch

- Tenda TEF1226P switch supports 24 PoE ports, which can supply power to most powered devices through 8-core Ethernet cable, and the total PoE power can be up to 370 W while each PoE port can support the maximum of 40 W.

6KV lighting protection PoE switch is the real monitoring private switch

- In real monitoring project, cameras are often installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis.Tenda TEF12 series switches have professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable , which equivalent to give the entire network monitoring system with a security fence,The test standard is much higher than the national CCC request,.In thunderstorms weather,it can also provide monitoring network stable, reliable service, protect the images transmission be normal

- In the complex surveillance environment, when making cabling and networking, it generally encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some only a few meters, some hundred meters, while some are more than kilometers. Tenda TEF12 series PoE monitoring switches with exclusive patent network extension technology and using the common existing twisted pair, can support 250 meters data transmission and break the existing twisted pair hundreds meters transmission limit. Providing gigabit linked light port can meet the demand of transmission to a few tens of

The PoE total power is 230W, 16 port power supply full load is enough

- The switch total output power is 230W, which can support 16 ports power supply full load. PoE power supply can meet the needs of HD camera and other power supply equipment. With eight core power supply design, network power consumption reduced half, which ensure the camera get electricity and stability.

The total PoE power is 370W, 24 port full load power supply is enough

- The machine total PoE power is 370W, can support 24 port full PoE power supply; One Port POE supply is 40W, PoE power supply can meet the full football machine and other power supply equipment neeeds; Eight core power supply design, network power consumption reduced to half, highly reduce the power loss of the inferior cable, make sure the camera get electricity and stability

Specification

Standard&Protocol

- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at

MTBF

- 100,000hours

LED indicator

- Link/Act, PoE Status,System, Power,PoE Max

Interface

- Fixed Ports:24 10/100Base-TX ports

- 2 10/100/1000Base-T ports

- 2 1000Base-X SFP ports Combo)

- lightning protection:≥6KV

Performance

- Store and forward:Yes

- Exchange capacity:8.8 Gbit/s

- MAC address entries:4K MAC

Power

- Power supply module:Providing 24 ports under IEEE 802.3af(15.4W) or 24 ports under IEEE 802.3at(30W)

- PoE through pin:1 2 4 5 +,3 6 7 8 -

- Voltage input range:AC:100-240V~ 50/60Hz

Dimension

- 440mm*284mm*44mm (L?W?H)

Weight

- ≤5kg

Power Consumption

- <450W

- PoE consumption up to 370W

Temperature

- Perating temperature:0 ℃~40 ℃

- Storage temperature:-40 ℃~70 ℃

Humidity

- Operational:10%~95%(noncondensing)

- Storage:10%~95%(noncondensing)

PoE supply management

- Support setup of PoE

- Support power adjustable by priority

- Support over temperature protection for PoE module

VLAN

- Support VLAN(4K) based on ports

- Support 802.1QVLAN

Mirroring

- Support local mirror image

Link Aggregation

- Support LACP, manual link aggregation

- Support up to 6 link aggregation groups and up to 8 GE ports per group

QoS

- Support message transmission for ports and limitation of speed

- Support SP & WRR

Layer 2 ring network protocol

- Support STP/RSTP and looped Network for devices

Certification

- FCC/CE/RoHS
